Dartmoor Baker 5 Eco Woodburning Cook Stove

ON DISPLAY - This product is available to view in our showroom

Dartmoor Baker 5 Eco Woodburning Cook Stove



The compact Eco 2022 compliant (Ecodesign) Dartmoor Baker 5 Eco, with a 5kw nominal output, has a good size oven and three shelf heights.

The Dartmoor Baker 5 Eco Stove has oven vents which allow the cooking smells and condensation to be drawn out of the oven and up the chimney.  If you would like to use the top of the stove to warm a pan or boil a kettle then the use of the back flue outlet is recommended when installing the stove.  Using the rear flue outlet will create a clear area, providing extra space and access to the hotter part of the top plate (near the back), a special Dartmoor Baker Eco back adaptor with flue cleaning access can be purchased to achieve this.

All the Dartmoor Baker Eco’s stoves have a removable cleaning plate located inside the oven. This door provides a cleaning access to the top of the oven or for sweeping the chimney when fitted with a top exit flue. Check your chimney sweep is happy to sweep through this access door before installation.

The Baker Eco stoves are supplied with stainless steel handles only.  The Baker 5 Eco is Eco 2022 compliant (Ecodesign Ready) and approved for the use in smoke control areas.

All the Dartmoor Bakers Eco Stoves have the option to be manufactured with an extended stove top.

The Baker 5 Eco (top width +120mm); Baker W5 (+150mm); Baker 8 (+180mm), and the standard option is on the left handside.

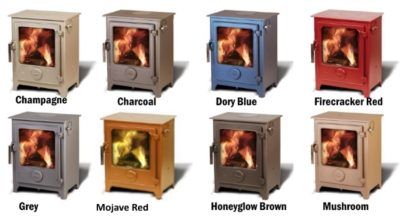

Available in a range of colours.

Colour Details Dimensions
Flat Black      Baker 5 Eco Profiled Flat Top W: 430
H: 720
D: 315
D: 375 with handle

All the Dartmoor Bakers Eco Stoves have the option to be manufactured with an extended stove top.  The Baker 5 Eco (top width +120mm); Baker W5 (+150mm); Baker 8 (+180mm), and the standard option is on the left handside .

Baker 5 Eco – Key Facts

Nominal Output 5kw
Efficiency 82.1%
Flue Size 125mm (5″)
Standard Leg Length 50mm (2″)
Flue Centre Top 100mm
Flue Centre Rear 618mm
Eco 2022 (Ecodesign Ready) √
Energy Efficiency Rating A+



Distance to combustibles (mm) Rear of
Stove
Side of
Stove
With Rear
Heat Shield
Dartmoor Baker 5 150 550 ***
